Thru - Hole PCB Mount RJ45 Lan Jack Right Angle Entry With LED / EMI Finger Tab Down

Name: Thru Hole PCB Mount RJ45 Lan Jack Right Angle Entry With LED EMI Finger Tab Down
Brand: DGHELING
Price: 1 USD

Wholesale Thru - Hole PCB Mount RJ45 Lan Jack Right Angle Entry With LED / EMI Finger Tab Down from china suppliers

Brand Name : DGHELING

Model Number : MJ1A-B211-RSL13T101-1

Certification : ISO9001 , RoHS , UL , CE , REACH

Place of Origin : China

MOQ : 3000

Price : Preferential & Competitive

Payment Terms : T / T， Paypal

Supply Ability : 3000 K Pieces Per Month

Delivery Time : Stock or 2 weeks

Packaging Details : Tray / Tape & Reel as your request

Series : RJ45 Lan Jacks

Keywords : RJ45 Lan Jack

Application : PCB

Orientation : Right Angle

Shielded : Yes

Position / Loaded Contacts : 8p8c

Performance catagory : 1000 M

Usage : For Networking and datacom equipment

Contact Now

Thru - Hole PCB Mount RJ45 Lan Jack Right Angle Entry with LED / EMI Finger Tab Down

Description:

Model number: MJ1A-B211-RSL13T101-1
Series: 1000 Base T RJ45 Jack
Gender: RJ45 Female Connector
Positions/ loads of contacts: 8P8C ( RJ45 , Ethernet )
Mounting type: Through hole
Latch Orientation: Right Angle (Side Entry)
LED indicator: Yes Green / Yellow

Specfication:

Part Number:		MJ1A-B211-RSL13T101-1
Product Family:		1000 Base T RJ45 Jack
Overview:		1000 Base T RJ45 1x1 8P8C Right Angle RJ45 Connector Black Housing
Description:		8 core 1x1 ports Right Angle 1000 Base T RJ45 Jack connector, Shielded with EMI Finger
		Operating temprature range: -40℃-70℃

General
Series:		1000 Base T RJ45 Jack
Numbers of ports:		1x1
Orientation:		Right Angle ( Side entry)
Pin type:		THT solder
Positions/ Loaded contacts		8P8C
Latch:		Tab up
LEDs:		YES
Shielded:		Shielded
Jack Height:		13.5mm
Magnetic:		Yes
Performance category:		1000 M
Power over Ethernet(PoE):		Optional
Physical
Color-Resin:		Black
Durability(mating cycles max):		750
Material	Metal:	Phosphor bronze
	Resin:	Liquid crystal polymer
	Plating termination:	Gold Flash
Plating min- mating:		6u"/15u"/30u" optional
Net Weight:		TBA
PCB:		FR4
PCB locator:		Yes
PCB retention:		None
PCB retaining post:		T-post
PCB Thickness- Recommended		1.6mm
Packaging type:		Tray
Temperature range:		-40℃-70℃
RoHS compliant		YES, RoHS AND Halogen-Free
Electrical
Current rating:		1.5AMPS
Voltage rating:		125V AC
Insulation Resistance:		500MΩ mini
Withstand voltage:		1000V RMS 60Hz
Contact Resistance:		50mΩ Max
Grounding to PCB:		YES
Grounding to Panel:		YES

HELING Right Angle RJ45 Connector Female Receptacle is designed as simple, flexible and low profile for ethernet connectivity applications, in particular, the network interface system etc.

Our Right Angle RJ45 Connector are widely used in:

Internet Data Center
Web Servers
Switches Hubs
Work Station
Network Information Center
Mother board
Unmanaged Switches
Consumer devices

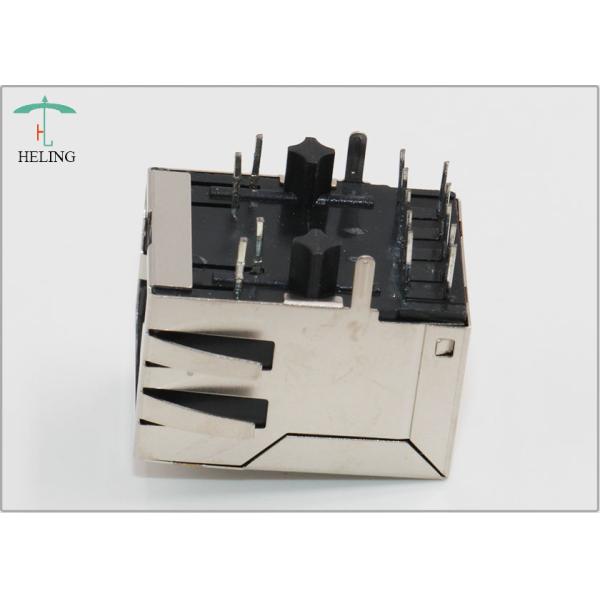

Product Images :

Thru - Hole PCB Mount RJ45 Lan Jack Right Angle Entry With LED / EMI Finger Tab Down
