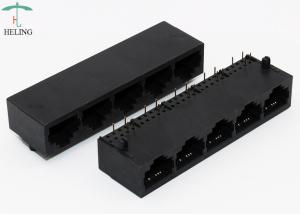

1 X 5 Side Entry RJ45 Female Connector Unshielded Tab Down THT Solder

Brand Name : DGHELING

Model Number : MJ5904-B015-BRN1

Certification : ISO9001 , RoHS , UL , CE , REACH

Place of Origin : China

MOQ : 1000

Price : Preferential & Competitive

Payment Terms : T / T， Paypal

Supply Ability : 300 K Pieces Per Month

Delivery Time : Stock or 4 weeks

Packaging Details : Tray / Tape & Reel as your request

Series : 1x5 Multi-port RJ45 Modular Jack

Numbers of Ports : 5

Port Matrix Configuration : 1 x 5

Orientation : Right Anlge(Side Entry)

Positions/Loaded Contacts : 8P8C

Latch : Tab Up

Pin Type : THT Solder

RoHS Compliant : Yes, RoHS and Halogen-Free

Contact Now

1 X 5 Side Entry RJ45 Modular Jack Connector, Tab down, Right Angle, THT Mounting

Our 1x5 Multi-port RJ45 Modular Jack are available in many different types for selection, such as Single/Multiple Port, Shielded/Unshielded, with EMI Finger/LED options.

Heling operates and specializes in the provision of 1x5 Multi-port RJ45 Modular Jack networking connectivity alongside solutions in the field of telecom and datacom; Heling offers a broad range of 1x5 Multi-port RJ45 Modular Jack for your data and signal transmissions.

Our 1x5 Multi-port RJ45 Modular Jack are widely used in Communication equipment, Telephone, Network Equipment, Hub, Switch, Router, Modem, PC mainboard etc.

1 X 5 Side Entry RJ45 Modular Jack Connector, Tab down, Right Angle, THT Mounting
Part Number:　MJ5904-B015-BRN1
Product Family:1*5 Multi-Port RJ45 Modular Jack
Overview:RJ45 1 x 5 ports 8P8C Jacks
Description:
　
　　		1 x 5 ports RJ45 connector, Side Entry,Unshielded
Operating temprature range: -40℃-70℃　
　　　　　
General
Series:1 x 5 Multi-Port RJ45 Connector
Numbers of ports:1 x 4　
Orientation:Right Angle
Pin type:THT solder　
Positions/ Loaded contacts:8P8C　
Latch:Tab Up
LEDs:None
Shielded:YES　
Jack Height:/　
Magnetic:None
Performance category:/
Power over Ethernet(PoE):Non-PoE　　　　　
Physical
Color-Resin:Black
Durability(mating cycles max):750　
MaterialMetal:Phosphor bronze　
Resin:Liquid crystal polymer　
Plating mating:Gold over Nickel　
Plating termination:Gold Flash　
Plating min- mating:1u"/3u"/6u"/15u"/30u"/50u" optional　
Net Weight:TBA　
PCB:FR4　
PCB locator:Yes　
PCB retention:None　
PCB retaining post:T-post　
PCB Thickness- Recommended1.6mm　
Packaging type:Tray　
Temperature range:-40℃-70℃　
Turns Ratio RX:1CT:1CT
Turns Ratio TX:1CT:1CT
Configuration RX:T,C
Configuration TX:T,C
RoHS compliant:YES, RoHS AND Halogen-Free　　　
Electrical
Current rating:1.5AMPS　
Voltage rating:125V AC　
Insulation Resistance:500MΩ mini　
Withstand voltage:1000V RMS 60Hz　
Contact Resistance:50mΩ Max　
Grounding to PCB:YES　
Grounding to Panel:YES　

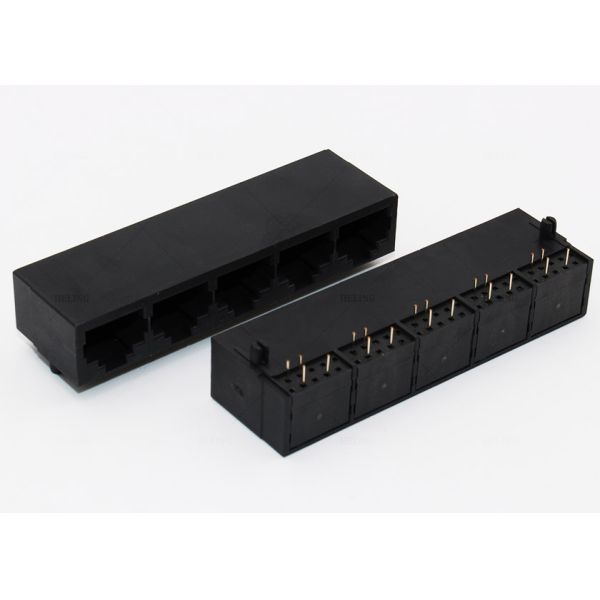

Product Picture:
1 X 5 Side Entry RJ45 Female Connector Unshielded Tab Down THT Solder
